Intelligent monitoring system
  • On-line temperature monitoring
    On-line temperature monitoring of busway function unit is carried out to issue timely alarm of over-temperature and other information, realizing comprehensive real-time temperature monitoring of bus.
  • Electrical parameter monitoring
    Real-time on-line monitoring of electrical parameters of bus mainline system is carried out, to issue timely alarm of various over-limit parameters, monitoring and analyzing the electrical parameters of busway.
  • Remote on-line monitoring
    It realizes real-time recording and cloud backup of operation data in bus mainline system, and remote control is carried out on the equipment operated by busway system.
Temperature rise monitoring system is an effective means to prevent electrical faults caused by the defects of various types of distribution equipment. It is realized by PH-One/Two/Three/Four series fault early warning collector and PH-O series temperature rise monitoring software.

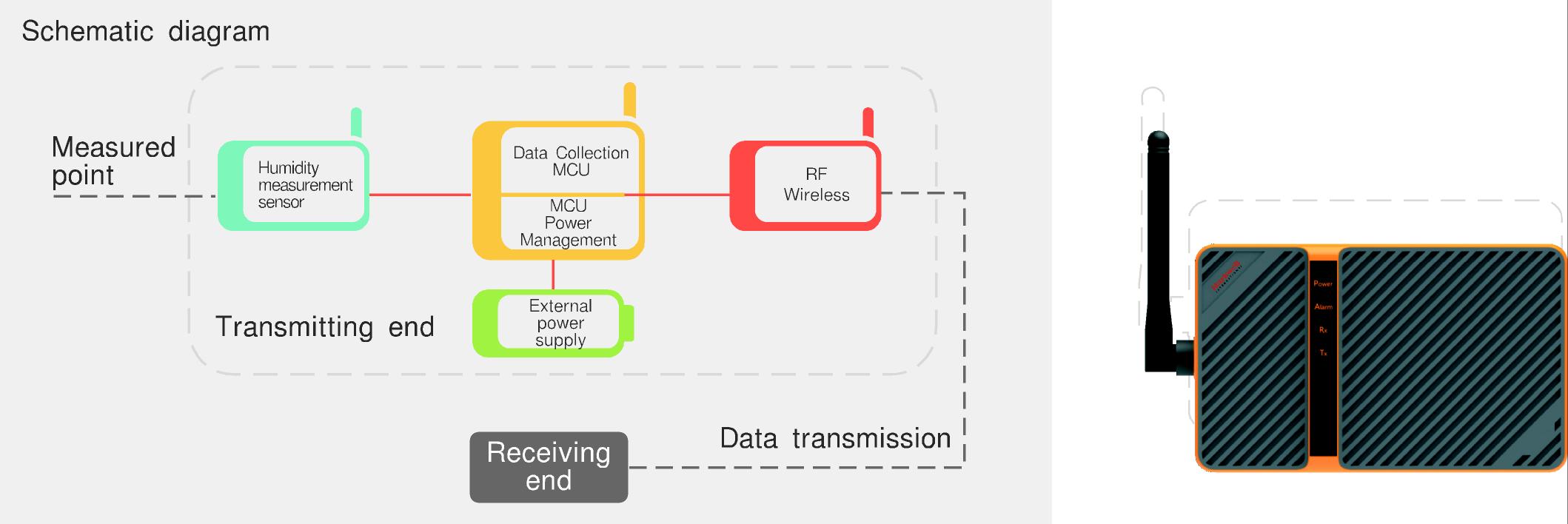

PH-One Series Fault Early Warning Acquisition Device
Suitable for compact busway and distribution equipment between floors
Product Characteristics
  • Local power supply, lifelong free maintenance

  • Basic networking module can reach the maximum communication range of positive and negative 30 floors.

  • Basic networking module can have up to 200 nodes

  • Independent Power Button

  • Can increase or decrease at will

User value
  • Easy to install and can be installed at any time

  • It does not affect insulation detection before power on

  • Easy to inspect and reduce workload by 95%.

  • Real-time monitoring to prevent busway explosion.

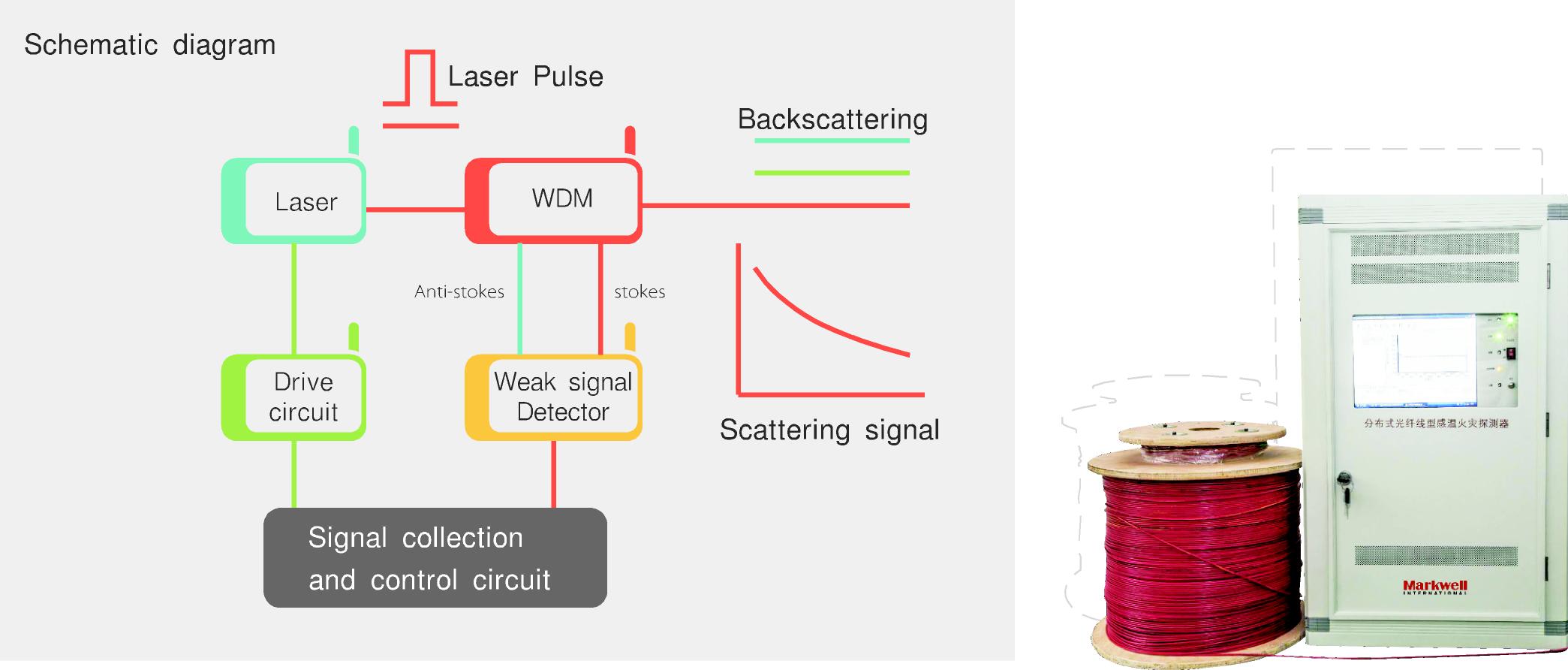

PH-Two Series Fault Early Warning Acquisition Device
Suitable for cable, bridge, capacitor, accumulator and other equipment that needs measuring surface temperature.
Product Characteristics
  • Continuous measurement

  • The maximum measuring distance can reach 2.5KM.

  • A host can connect 8 measuring circuits.

  • Optical fibers are insulators

User value
  • It is easy to install and can be used for conductors of various shapes.

  • Easy to use in large-scale continuous measurement

  • Real-time monitoring, free from manual inspection

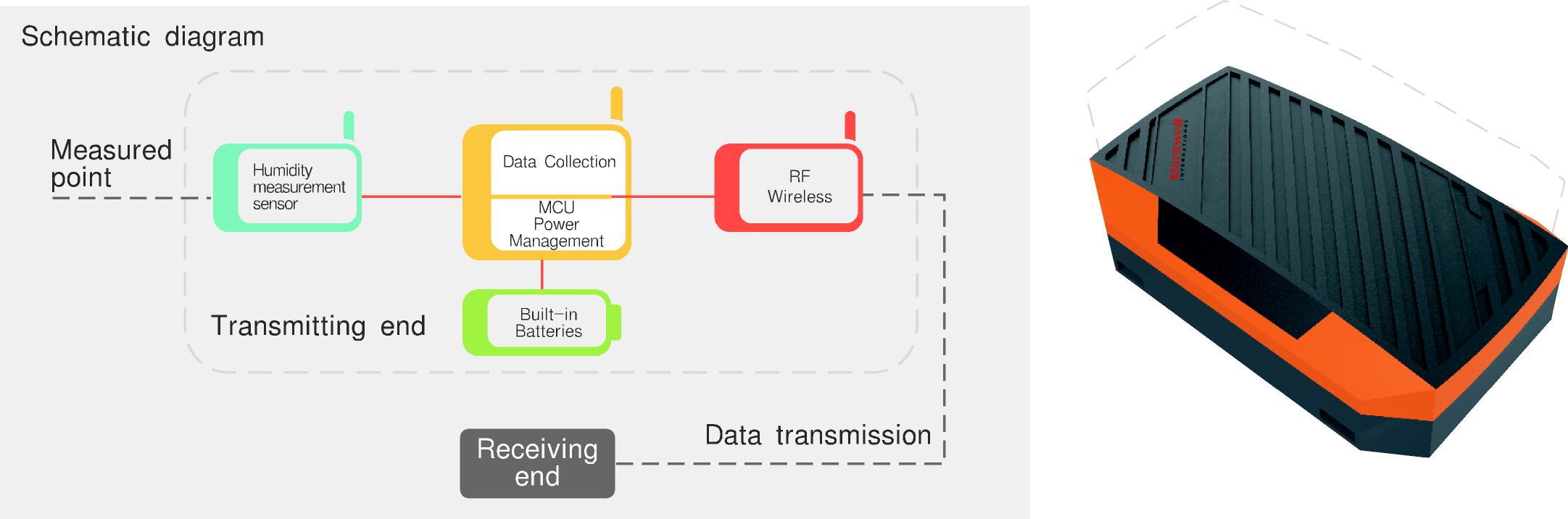

PH-three Series Fault Early Warning Acquisition Device
Suitable for low voltage cabinet, transformer and other copper row connection.
Product characteristics
  • Long distance of communication, no expansion can be applied to the space of 60m*60m

  • Basic networking module is up to 600 points

  • Service life of battery can last more than 7 years.

  • Suitable for installation of most single-phase conductors

  • Collector can be added or deleted at will.

User value
  • No additional installation time is needed.

  • Patrol workload and errors can be lowered.

  • Early warning is issued in time and no accidental power failure occurs throughout the year.

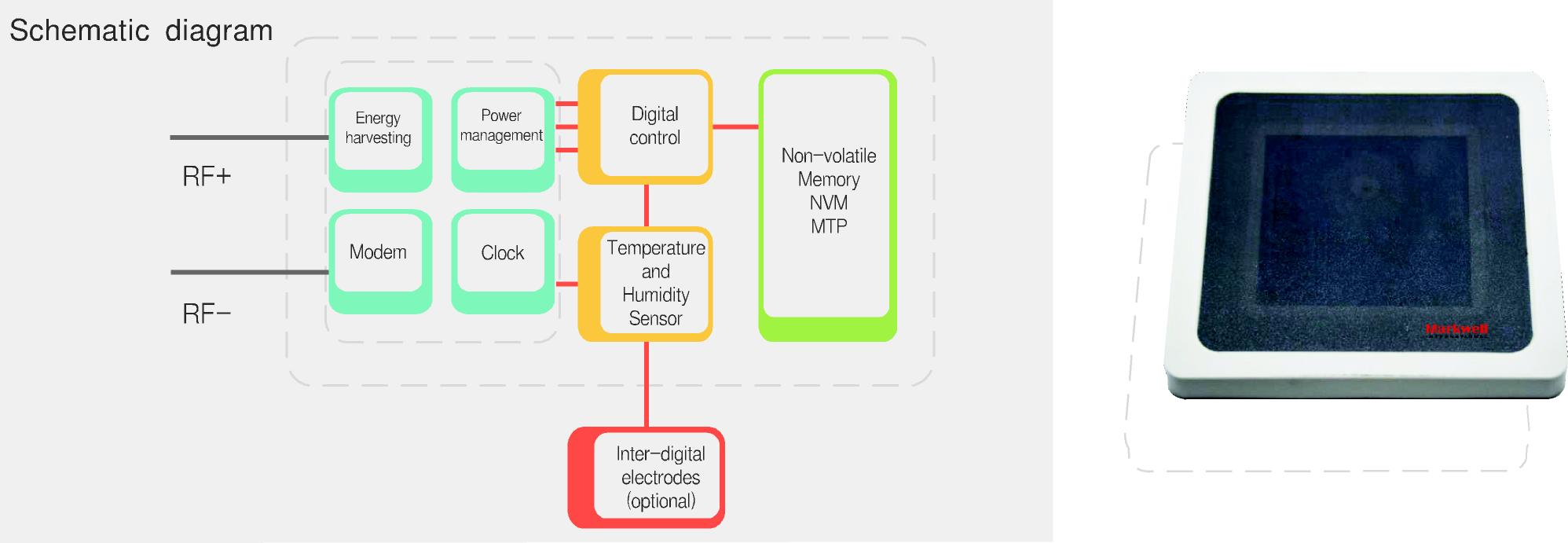

PH-Four Series Fault Early Warning Acquisition Device
Suitable for high-pressure equipment with high safety requirements such as centrally installed switchgear of high-voltage.
Product Characteristics
  • Wireless and passive Sensor with lifelong  free maintenance

  • Chips can be implanted into various substrates, suitable for places with high safety requirements.

User value
  • Provide effective inspection means for places with high voltage and safety requirements

  • On-line lifelong free maintenance to solve the difficulties of power outage installation

  • Real-time monitoring, free from manual inspection

PH-O Series Temperature Rise Monitoring Software
  • PH-O series system software of temperature rise data monitoring of distribution equipment is an effective analysis and management tool for customer management of distribution equipment operation status. The software has powerful data recording and retrieval functions. Users can extract and calculate arbitrary data. The database is stable and reliable, and occupies less storage space.

  • PH-O series software has built-in multiple criteria to facilitate users to make judgments on the operation status of the equipment, and can also be based on the actual operation experience of customers to carry out secondary development so as to establish a judgment model, which is convenient and flexible, and suitable for various application scenarios. And it can provide the corresponding disposal measures and suggestions, as well as relevant supplier information, so that customers can make emergency disposal in a timely manner.

  • PH-O series software has on-site display version, central–control-room display version, and cloud display version, suitable for various on-site display operations. With 512 points, 1024 points and unlimited capacity to choose, customers can choose the most cost-effective way to use.

Product Characteristics
  • Multi-criteria horizontal analysis and comparison, automatic charts save effort and time

  • Open protocol facilitates comparative analysis with power data

  • Multiple security levels, which is easy to operate, ensure data security

  • Detailed address display is easy to troubleshoot on-site anomalies

  • With massive database capacity, historical data can be retrieved at any time

  • With simple interface, all levels of operators can be competent for its operation

User value
  • Only receiving the information that needs to be processed saves time and effort.

  • Detailed alarm information is convenient for leaders at all levels to take disposal measures. Detailed data record is convenient for data research and analysis.

  • Push detailed disposal information to facilitate user to make a decision.
